Solderability Testing
In the field of electronic manufacturing, ensuring that components can reliably connect to the circuit board during soldering is crucial. Solderability testing is a method used to evaluate the soldering capability of the metal surfaces on electronic components. By performing solderability tests as specified in MIL-STD-750 and MIL-STD-883 standards, manufacturers can confirm whether components maintain good soldering performance during production or after long-term storage.
Importance of Solderability Testing
Solderability testing is critical for ensuring that electronic components can be correctly and securely soldered to circuit boards during assembly. Good solderability affects not only the manufacturing efficiency of electronic devices but also directly relates to the reliability and performance of the final product. Oxidation, corrosion, or contamination of the metal surfaces can affect the quality of the solder joints, thereby impacting the functionality of the entire device. MIL-STD-750 and MIL-STD-883 standards provide detailed methods for evaluating the solderability of semiconductor devices and microelectronic components, ensuring that these components exhibit high reliability in various military and aerospace applications.
Methods of Solderability Testing
● Moisture Aging Test: Components are aged under specific high humidity and temperature conditions for a certain period to simulate the effects of long-term storage, followed by soldering tests.
● Solderability Test: The soldering capability of the component terminals is evaluated through actual soldering operations. Standard solder and soldering conditions are typically used to inspect the quality and integrity of the formed solder joints.
● Solder Paste Printing and Reflow Soldering Test: For surface mount technology (SMT) components, solder paste printing and reflow soldering tests are common methods for solderability evaluation. These tests examine the wetting of solder paste on component terminals and the quality of the connections after soldering.
● Visual Inspection and Shear Test: After soldering, the appearance of the solder joints is assessed through visual inspection, and the mechanical strength of the solder joints is tested using a shear tester to ensure the soldering quality meets the specified standards.
Solderability Testing Equipment
● X-ray Inspection System: Used to check the internal structure of solder joints and identify internal defects such as voids and gaps. X-ray inspection systems can provide three-dimensional imaging of solder joints.

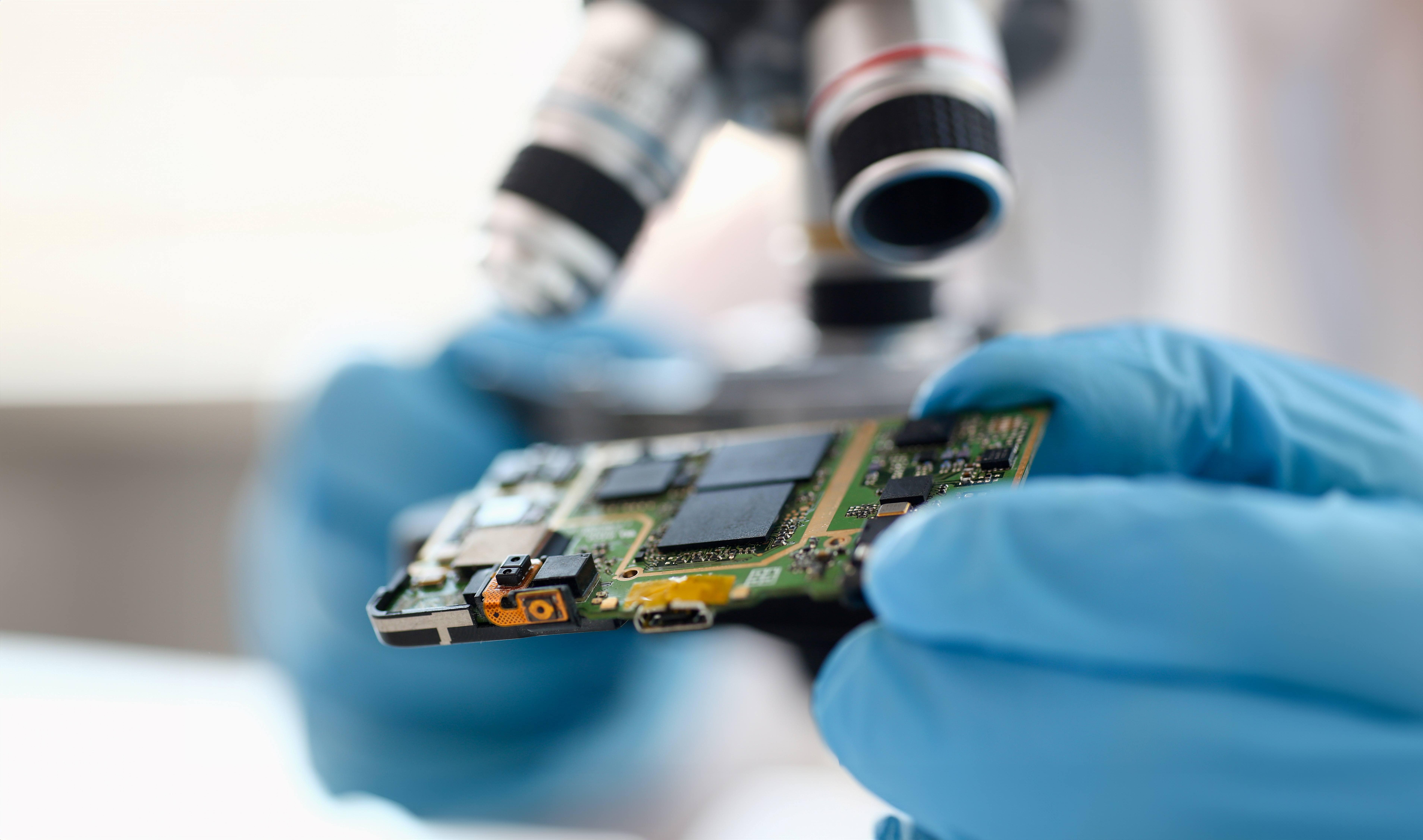

● Microscope: High-power microscopes are used to examine the morphology of solder joints, identifying soldering defects such as voids, cracks, and uneven soldering.
In our laboratory, solderability testing is a critical step in ensuring the quality and reliability of electronic components. By utilizing advanced testing equipment and techniques, we provide clients with comprehensive evaluations of soldering performance. This helps clients confirm that components maintain good solderability during production and long-term storage, enhancing manufacturing efficiency and the reliability of the final product. Our testing services ensure that clients can confidently choose and use high-quality electronic components, achieving superior product performance and market competitiveness.
